We offer fire water pumps for fire fighting.
The pump is direct diesel engine driven, electrical motor driven, or PTO gear driven.
Single stage, single suction centrifugal pump.
Capacity: 4200m3/h,3600 m3/h, 2400 m 3/h, 1800 m3/h, 1200 m3/h, 600 m3/h, 300 m3/h
250 m3/h
Certificate: CCS BV ABS DNV and other Class
Casing: Ni-AL-Bronze/Nodular Cast Iron

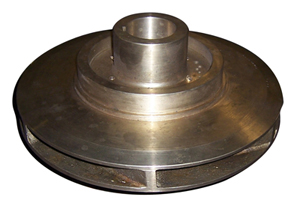

Impeller in: Ni-AL-Bronze
Shaft in Stainless Steel
Fluid:Sea Water, Water
| Spec of 1200m3/h Fire Water Pump |
| Certificate |
CCS Certificate |
| Type |
Single-stage horizontal centrifugal pump |
| Fluid |
Seawater(1.03T/m3) |
| Temperature |
32℃ |
| Capacity |
1200m3/hr |
| Speed |
1800r/min |
| Total Head |
160m |
| Power |
668KW |
| Efficiency |
80% |
| NPSHr |
4.2m |
| Inlet |
DN300 |
| Outlet |
DN250 |
| Materials |
|
| Pump Shell |
Nodular Cast Iron |
| Impeller |
Ni-Al-bronze |
| Shaft |
Stainless Steel |
| Seal |
Soft Seal |
|
 |
