Regulable Fire Monitor
Capacity: 30-50 L/S
The multi-function fire monitor is a new fire-fighting product. It is used to extinguish the fire caused by general solid materials. It can be fixed in fire appliance, fire boats and output oil docks.
This monitor has many features, such as adjustable flow,long range, multi-function and making straight stream to 90°,freely adjustable fog flow, flexibleand convenient operating. The body of the monitor can be rotated horizontally or vertically, and can be fixed.
|
Rated Capacity |
30-50 L/S, 108-180m3/hr |
Fluid |
Sea Water/Water |
Range |
55-65 m |
Working Pressure |
0.8-1.2 MPa |
Inlet Flange |
DN100 |
Operation |
Manual |
Rotation |
360° |
Elevation |
-35°/+75° |
|
|
|
Portable hand-operating fire monitor
Capacity: 30-50 L/S
This monitor is jet/fog adjustable
Rated Capacity |
30-50 L/S, 108-180m3/hr |
Fluid |
Sea Water/Water |
Range |
55-65 m |
Working Pressure |
0.8-1.2 MPa |
Inlet Flange |
2XKSW65 |
Operation |
Manual |
Rotation |
360° |
Elevation |
-35°/+75° |
|
|
New Flow Adjustable Fire Monitor
Capacity: 30-60 L/S
This monitor is jet/fog adjustable
Rated Capacity |
30-60 L/S, 108-216m3/hr |
Fluid |
Sea Water/Water |
Range |
55-70 m |
Working Pressure |
0.8-1.2 MPa |
Inlet Flange |
DN100 |
Operation |
Manual |
Rotation |
360° |
Elevation |
-35°/+75° |
|
|
|

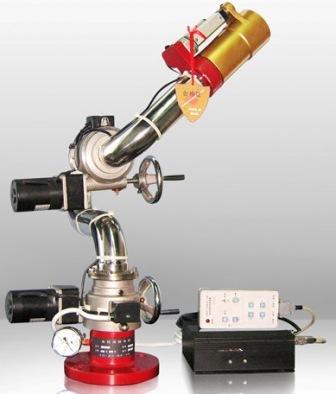

Electric Remote Control Fire Monitor
Capacity: 20-60 L/S
This monitor has many features, such as adjustable flow, long range, freely adjustable fog flow, flexible and convenient operating. The body of the monitor can be rotated horizontally or vertically by electric and hand wheel.
Corrosion resistant stainless steel construction |
Rated Capacity |
20-60 L/S, 72-216m3/hr |
Fluid |
Sea Water/Water |
Range |
57-85 m |
Inlet Pressure |
0.8 MPa |
Operation |
24V DC Electric, Hand wheel |
Rotation |
360° |
Elevation |
-72°/+90° |
|
|
300-3600m3/h Fire Monitor
| |
|
|
