Telescopic Crane |
|

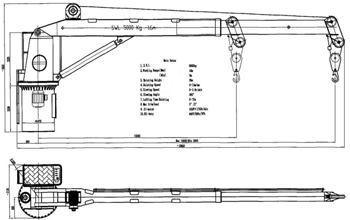

5T 16m Electrical-Hydraulic Telescopic Crane
- with Electro-hydraulic power pack built in
- S.W.L.: 5T @ 16 Mtr.
- Hoist Speed: 0 - 15 m/min, Hoisting Height:25 m (max)
- Working Radius: 3 - 16 m.
- Luffing Speed: 0~ 75 sec.
- Rotating speed: 0 - 0.8 rpm
- Slewing Angle: 360° continuous.
- Trim/Heel Angle: 2° - 5°
- Electrical Motor: 30 Kw x 1750 rpm
- Power: 415V/50Hz/3ph.
- Elec. Motor Protect class: IP 56, Insulation class: F
- Hyd Oil Working Press. x Flow Rate:15 Mpax 100 L/min.
- TTL Weight: 11.2T
- CCS Certificate |
|
3T 9m Electrical-Hydraulic Telescopic Crane
- S.W.L.: 3T @ 9 Mtr.
- Hoist Speed: 0 - 15 m/min, Hoisting Height:30 m (max)
- Working Radius: 2 - 9 m.
- Luffing Speed: 0~ 75 sec.
- Rotating speed: 0 - 1.1 rpm
- Slewing Angle: 360° continuous.
- Electrical Motor: 22 Kw x 1370 rpm
More Capacity Crane on Request |
